Cloud Foundry を Zabbix で監視する
Cloud Foundry 上で動くアプリの話ではなく、 Cloud Foundry を構成する各仮想マシンの監視の話。 ぶっちゃけ BOSH で監視すれば?って話なんだが、 政治的な理由で Zabbix で監視する必要がある場合もある。 そんな場合は cf-release をいじって Zabbix Agent を実行する Job を追加するのが正道。
cf-release の修正
cf-release の v173 をいじって、zabbix のジョブを追加する。
cf-release の修正のためにはオリジナルの cf-release を clone した後に、 対応する Blob Store を自分が書き込み権限を持つ Blob Store に変更しなければならない。
自分用 cf-release への下準備
cf-release を clone した後に、 blob を自分の Blob Store にアップロードし直し、 完全に cf-release を自分の管理下におさめる。

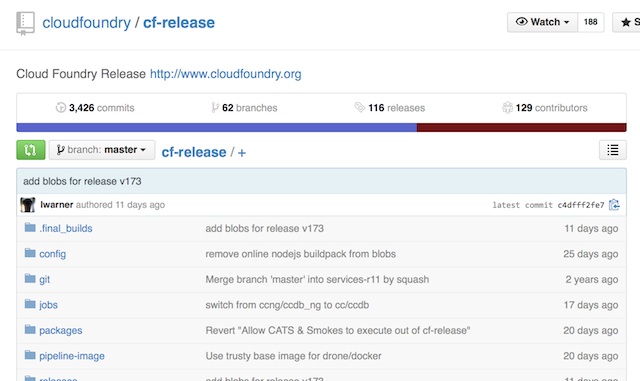

$ git clone https://github.com/cloudfoundry/cf-release.git
$ cd cf-release/
$ git checkout -b cf-modify refs/tags/v173
$ git submodule foreach --recursive \
'git submodule sync; git clean -d --force --force'
$ git submodule update --init --recursive --force
とりあえず今回の場合は、 cf-release v173 から fork する。
$ bosh sync blobs
$ mv blobs blobs-old
$ cp -RL blobs-old blobs
$ rm -rf blobs-old
v173 で使用している blobs をダウンロードする。 bosh は blobs ディレクトリ配下にあるファイルが、 シンボリックリンクか実ファイルかであるかで、 Blob Store にアップロードされている blobs かそうでないかを判断しているため、 上記の作業で blobs ディレクトリ下のファイルをすべて実ファイルに変換する。
実ファイルに変換した後に、 自分が利用する Blob Store にファイルを後にアップロードする。
$ rm -rf .blobs
$ rm -f config/blobs.yml
$ rm -rf .final_build
$ rm -rf releases
また、必要ないファイルを削除する。 これにより自分の管理下である Blob Store をまっさらな状態で利用することが可能。
$ vim config/final.yml
# final.yml
---
blobstore:
provider: dav
options:
endpoint: http://localhost/storage
$ vim config/private.yml
# private.yml
---
blobstore:
dav:
user: admin
password: admin
今回は Blob Store として WebDAV を利用する。 localhost の storage というパスに WebDAV を構築している物とする。 アクセスするための認証情報は、 BASIC 認証で admin:admin.
$ yes yes | bosh upload blobs
上記のコマンドで、 blobs ディレクトリにある blobs が WebDAV にアップロードされる。
$ git add .
$ git add -u .
$ git commit -m "Creating modify cf-release base."
これにて cf-release を自分用にカスタマイズする準備は整った。 整ったところで git commit する。
Zabbix Agent を cf-release に追加する
bosh の Release Repository を簡単にいじるツールとして、 bosh-gen があるのでそれをインストールしておく。
$ sudo gem install bosh-gen
Zabbix のアーカイブを blobs に追加
$ mkdir -p blobs/zabbix
$ cd blobs/zabbix/
$ curl -L -O http://downloads.sourceforge.net/project/zabbix/ZABBIX%20Latest%20Stable/2.0.11/zabbix-2.0.11.tar.gz
$ yes yes | bosh upload blobs
$ git add .
$ git diff HEAD
diff --git a/config/blobs.yml b/config/blobs.yml
index 9c86422..cf8f762 100644
--- a/config/blobs.yml
+++ b/config/blobs.yml
@@ -609,3 +609,8 @@ libyaml/yaml-0.1.4.tgz:
sha: !binary |-
ZTBlNWUwOTE5MmFiMTBhNjA3ZTNkYTI5NzBkYjQ5MjExOGY1NjBmMg==
size: 471759
+zabbix/zabbix-2.0.11.tar.gz:
+ object_id: c6711ac2-1e43-4822-bcc9-bb31ce8aec7b
+ sha: !binary |-
+ NjAzNmM3MGU3NGNlYTYzNTc2MzA3OGQ4NmM1ZTUyNWI2ZmRiNjhkNw==
+ size: 13680855
Zabbix のバージョン 2.0.11 のソースコードを入手し、 blobs フォルダに追加した後に Blob Store にアップロードする。
$ git commit -m "Added zabbix-2.0.11 blob."
config/blobs.yml
を確認し、
Blob Store にちゃんとアップロードされていたら git commit
する。
zabbix パッケージの追加
仮想マシンにzabbix をコンパイル、 インストールするための zabbix パッケージを作成する。
$ cd ${RELEASE_DIR}
$ bosh-gen package zabbix
create packages/zabbix/packaging
create packages/zabbix/spec
bosh-gen package
により、
Release Repository に zabbix package のスケルトンが追加される。
packages/zabbix/packaging
および
packages/zabbix/spec
を修正する。
$ vim packages/zabbix/packaging
$ vim packages/zabbix/spec
$ git add .
$ git diff HEAD
diff --git a/packages/zabbix/packaging b/packages/zabbix/packaging
new file mode 100644
index 0000000..53534ed
--- /dev/null
+++ b/packages/zabbix/packaging
@@ -0,0 +1,15 @@
+set -e # exit immediately if a simple command exits with a non-zero status
+set -u # report the usage of uninitialized variables
+
+# Detect # of CPUs so make jobs can be parallelized
+CPUS=$(grep -c ^processor /proc/cpuinfo)
+ # Available variables
+# $BOSH_COMPILE_TARGET - where this package & spec'd source files are available
+# $BOSH_INSTALL_TARGET - where you copy/install files to be included in package
+export HOME=/var/vcap
+
+tar xfv zabbix/zabbix-2.0.11.tar.gz
+cd zabbix-2.0.11
+./configure --prefix=${BOSH_INSTALL_TARGET} --enable-agent
+make
+make install
diff --git a/packages/zabbix/spec b/packages/zabbix/spec
new file mode 100644
index 0000000..19fa224
--- /dev/null
+++ b/packages/zabbix/spec
@@ -0,0 +1,5 @@
+---
+name: zabbix
+dependencies: []
+files:
+- zabbix/zabbix-2.0.11.tar.gz
packaging ファイルには zabbix をコンパイルおよびインストールするスクリプトを記述、 spec ファイルには packaging じに必要とされるファイルのリストを記述する。
$ git commit -m "Added zabbix package."
ここまでの修正を commit しておく。
zabbix-agent Job の追加
bosh-gen job
コマンドを使って、
zabbix-agent Job のスケルトンを作成する。
-d
オプションには依存する Package を指定する。
$ bosh-gen job zabbix-agent -d zabbix
create jobs/zabbix-agent
create jobs/zabbix-agent/monit
create jobs/zabbix-agent/templates/bin/zabbix-agent_ctl
create jobs/zabbix-agent/templates/bin/monit_debugger
create jobs/zabbix-agent/templates/config/.gitkeep
create jobs/zabbix-agent/templates/data/properties.sh.erb
create jobs/zabbix-agent/templates/helpers/ctl_setup.sh
create jobs/zabbix-agent/templates/helpers/ctl_utils.sh
create jobs/zabbix-agent/spec
$ git add .
$ git commit -m "Added zabbix-agent job base."
zabbix-2.0.11 のソースコードを解凍すると、 zabbix-agentd のデフォルトの設定ファイルが入手できるので、 それを Job のテンプレートとして templates フォルダに追加する。
$ cp ${SOMEWHERE}/zabbix-2.0.11/conf/zabbix_agentd.conf \
jobs/zabbix-agent/templates/zabbix_agentd.conf.erb
$ git add . && git commit -m "Added original zabbix agentd config."
すべての準備は整ったので、
- zabbix_agentd.conf.erb
- zabbix-agent_ctl
- spec
を修正する。
$ vim jobs/zabbix-agent/templates/zabbix_agentd.conf.erb
$ vim jobs/zabbix-agent/templates/bin/zabbix-agent_ctl
$ vim jobs/zabbix-agent/spec
$ git add . && git commit -m "Fixed zabbix agent job."
zabbix_agentd.conf.erb
は、bosh およびそのシステム特有の設定を変数として埋め込む。
zabbix-agent_ctl
では zabbix agent を起動するスクリプトを記述する。
spec
ファイルではテンプレートファイルをどこに配置するかを記述する。
$ git diff HEAD^ HEAD
diff --git a/jobs/zabbix-agent/spec b/jobs/zabbix-agent/spec
index cbc500c..513f225 100644
--- a/jobs/zabbix-agent/spec
+++ b/jobs/zabbix-agent/spec
@@ -8,3 +8,8 @@ templates:
data/properties.sh.erb: data/properties.sh
helpers/ctl_setup.sh: helpers/ctl_setup.sh
helpers/ctl_utils.sh: helpers/ctl_utils.sh
+ zabbix_agentd.conf.erb: config/zabbix_agentd.conf
+
+properties:
+ zabbix.server.address:
+ description: "IP address of Zabbix server"
diff --git a/jobs/zabbix-agent/templates/bin/zabbix-agent_ctl b/jobs/zabbix-agent/templates/bin/zabbix-agent_ctl
index fd08097..b5c1e5b 100644
--- a/jobs/zabbix-agent/templates/bin/zabbix-agent_ctl
+++ b/jobs/zabbix-agent/templates/bin/zabbix-agent_ctl
@@ -14,8 +14,8 @@ case $1 in
start)
pid_guard $PIDFILE $JOB_NAME
- # TODO: Run some process
- exec chpst -u vcap:vcap TODO \
+ exec chpst -u vcap:vcap /var/vcap/packages/zabbix/sbin/zabbix_agentd \
+ -c /var/vcap/jobs/zabbix-agent/config/zabbix_agentd.conf \
>>$LOG_DIR/$JOB_NAME.stdout.log \
2>>$LOG_DIR/$JOB_NAME.stderr.log
@@ -33,4 +33,4 @@ case $1 in
;;
esac
-exit 0
\ No newline at end of file
+exit 0
diff --git a/jobs/zabbix-agent/templates/zabbix_agentd.conf.erb b/jobs/zabbix-agent/templates/zabbix_agentd.conf.erb
index 345523e..8686a42 100644
--- a/jobs/zabbix-agent/templates/zabbix_agentd.conf
+++ b/jobs/zabbix-agent/templates/zabbix_agentd.conf
@@ -18,7 +18,7 @@
# Default:
# LogFile=
-LogFile=/tmp/zabbix_agentd.log
+LogFile=/var/vcap/sys/log/zabbix-agent/zabbix_agentd.log
### Option: LogFileSize
# Maximum size of log file in MB.
@@ -79,7 +79,7 @@ LogFile=/tmp/zabbix_agentd.log
# Default:
# Server=
-Server=127.0.0.1
+Server=<%= p("zabbix.server.address") %>
### Option: ListenPort
# Agent will listen on this port for connections from the server.
@@ -120,7 +120,7 @@ Server=127.0.0.1
# Default:
# ServerActive=
-ServerActive=127.0.0.1
+ServerActive=<%= p("zabbix.server.address") %>
### Option: Hostname
# Unique, case sensitive hostname.
@@ -131,7 +131,7 @@ ServerActive=127.0.0.1
# Default:
# Hostname=
-Hostname=Zabbix server
+Hostname=<%= spec.job.name %>-<%= spec.index %>
### Option: HostnameItem
# Item used for generating Hostname if it is undefined. Ignored if Hostname is defined.
具体的な修正箇所は以上。
$ bosh create release
bosh create release
コマンドにより Dev Release を作成し、
実装した zabbix-agent Job をテストする。
